Layout Class Reference

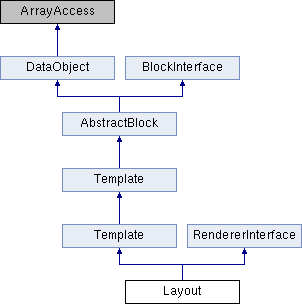

Inheritance diagram for Layout:

Public Member Functions
	__construct (\Magento\Backend\Block\Template\Context $context, \Magento\Catalog\Model\Product\Type $productType, array $data=[], Json $serializer=null)
	render (AbstractElement $element)
	setElement (AbstractElement $element)
	getElement ()
	getCategoriesChooserUrl ()
	getProductsChooserUrl ()
	getBlockChooserUrl ()
	getTemplateChooserUrl ()
	getDisplayOnSelectHtml ()
	getDisplayOnContainers ()
	getLayoutsChooser ()
	getPageLayoutsPageChooser ()
	getAddLayoutButtonHtml ()
	getRemoveLayoutButtonHtml ()
	getPageGroups ()
Public Member Functions inherited from Template
	__construct (\Magento\Backend\Block\Template\Context $context, array $data=[])
	getFormKey ()
	isOutputEnabled ($moduleName=null)
	getAuthorization ()
	getToolbar ()
Public Member Functions inherited from Template
	__construct (Template\Context $context, array $data=[])
	setTemplateContext ($templateContext)
	getTemplate ()
	setTemplate ($template)
	getTemplateFile ($template=null)
	getArea ()
	assign ($key, $value=null)
	fetchView ($fileName)
	getBaseUrl ()
	getObjectData (\Magento\Framework\DataObject $object, $key)
	getCacheKeyInfo ()
Public Member Functions inherited from AbstractBlock
	__construct (\Magento\Framework\View\Element\Context $context, array $data=[])
	getJsLayout ()
	getRequest ()
	getParentBlock ()
	setLayout (\Magento\Framework\View\LayoutInterface $layout)
	getLayout ()
	setNameInLayout ($name)
	getChildNames ()
	setAttribute ($name, $value=null)
	setChild ($alias, $block)
	addChild ($alias, $block, $data=[])
	unsetChild ($alias)
	unsetCallChild ($alias, $callback, $result, $params)
	unsetChildren ()
	getChildBlock ($alias)
	getChildHtml ($alias='', $useCache=true)
	getChildChildHtml ($alias, $childChildAlias='', $useCache=true)
	getBlockHtml ($name)
	insert ($element, $siblingName=0, $after=true, $alias='')
	append ($element, $alias='')
	getGroupChildNames ($groupName)
	getChildData ($alias, $key='')
	getUiId ($arg1=null, $arg2=null, $arg3=null, $arg4=null, $arg5=null)
	getJsId ($arg1=null, $arg2=null, $arg3=null, $arg4=null, $arg5=null)
	getUrl ($route='', $params=[])
	getViewFileUrl ($fileId, array $params=[])
	formatDate ( $date=null, $format=\IntlDateFormatter::SHORT, $showTime=false, $timezone=null)
	formatTime ( $time=null, $format=\IntlDateFormatter::SHORT, $showDate=false)
	getModuleName ()
	escapeHtml ($data, $allowedTags=null)
	escapeJs ($string)
	escapeHtmlAttr ($string, $escapeSingleQuote=true)
	escapeCss ($string)
	stripTags ($data, $allowableTags=null, $allowHtmlEntities=false)
	escapeUrl ($string)
	escapeXssInUrl ($data)
	escapeQuote ($data, $addSlashes=false)
	escapeJsQuote ($data, $quote='\'')
	getNameInLayout ()
	getCacheKeyInfo ()
	getCacheKey ()
	getVar ($name, $module=null)
	isScopePrivate ()
Public Member Functions inherited from DataObject
	__construct (array $data=[])
	addData (array $arr)
	setData ($key, $value=null)
	unsetData ($key=null)
	getData ($key='', $index=null)
	getDataByPath ($path)
	getDataByKey ($key)
	setDataUsingMethod ($key, $args=[])
	getDataUsingMethod ($key, $args=null)
	hasData ($key='')
	toArray (array $keys=[])
	convertToArray (array $keys=[])
	toXml (array $keys=[], $rootName='item', $addOpenTag=false, $addCdata=true)
	convertToXml (array $arrAttributes=[], $rootName='item', $addOpenTag=false, $addCdata=true)
	toJson (array $keys=[])
	convertToJson (array $keys=[])
	toString ($format='')
	__call ($method, $args)
	isEmpty ()
	serialize ($keys=[], $valueSeparator='=', $fieldSeparator=' ', $quote='"')
	debug ($data=null, &$objects=[])
	offsetSet ($offset, $value)
	offsetExists ($offset)
	offsetUnset ($offset)
	offsetGet ($offset)
Public Member Functions inherited from BlockInterface
	toHtml ()
Public Member Functions inherited from RendererInterface
	render (\Magento\Framework\Data\Form\Element\AbstractElement $element)

Protected Member Functions
	_getDisplayOnOptions ()
Protected Member Functions inherited from Template
	_toHtml ()
Protected Member Functions inherited from Template
	_construct ()
	_toHtml ()
	getRootDirectory ()
	getMediaDirectory ()
Protected Member Functions inherited from AbstractBlock
	_construct ()
	_prepareLayout ()
	_beforeToHtml ()
	_afterToHtml ($html)
	_toHtml ()
	_getNotFoundUrl ($route='', $params=['_direct'=> 'core/index/notFound'])
	getCacheTags ()
	getCacheLifetime ()
	_loadCache ()
	_saveCache ($data)
	_getSidPlaceholder ($cacheKey=null)
Protected Member Functions inherited from DataObject
	_getData ($key)
	_underscore ($name)

Protected Attributes
	$_element = null
	$_template = 'Magento_Widget::instance/edit/layout.phtml'
	$_productType
Protected Attributes inherited from Template
	$_authorization
	$mathRandom
	$_backendSession
	$formKey
	$nameBuilder
Protected Attributes inherited from Template
	$_viewVars = []
	$_baseUrl
	$_jsUrl
	$_allowSymlinks
	$_filesystem
	$_template
	$templateEnginePool
	$_storeManager
	$_appState
	$directory
	$templateContext
	$pageConfig
	$resolver
	$validator
Protected Attributes inherited from AbstractBlock
	$_design
	$_session
	$_sidResolver
	$_nameInLayout
	$_layout
	$jsLayout = []
	$_request
	$_urlBuilder
	$_eventManager
	$_frontController
	$_assetRepo
	$_viewConfig
	$_cacheState
	$_logger
	$_escaper
	$filterManager
	$_localeDate
	$inlineTranslation
	$_isScopePrivate = false
	$_scopeConfig
	$_cache
Protected Attributes inherited from DataObject
	$_data = []

Additional Inherited Members
Static Public Member Functions inherited from AbstractBlock
static	extractModuleName ($className)
Data Fields inherited from Template
const	XML_PATH_TEMPLATE_ALLOW_SYMLINK = 'dev/template/allow_symlink'
Data Fields inherited from AbstractBlock
const	CACHE_GROUP = \Magento\Framework\App\Cache\Type\Block::TYPE_IDENTIFIER
const	CACHE_KEY_PREFIX = 'BLOCK_'
Static Protected Attributes inherited from DataObject
static	$_underscoreCache = []

Detailed Description

Widget Instance page groups (predefined layouts group) to display on

@method \Magento\Widget\Model\Widget\Instance getWidgetInstance()

Definition at line 20 of file Layout.php.

Constructor & Destructor Documentation

__construct()

__construct	(	\Magento\Backend\Block\Template\Context	$context,
		\Magento\Catalog\Model\Product\Type	$productType,
		array	$data = [],
		Json	$serializer = null
	)

Parameters

\Magento\Backend\Block\Template\Context	$context
\Magento\Catalog\Model\Product\Type	$productType
array	$data
Json | null	$serializer

Definition at line 48 of file Layout.php.

      {
        $this->_productType = $productType;
        $this->serializer = $serializer ?: ObjectManager::getInstance()->get(Json::class);
        parent::__construct($context, $data);
    }

Member Function Documentation

_getDisplayOnOptions()

_getDisplayOnOptions ( )

protected

Retrieve Display On options array.

• Categories (anchor and not anchor)
• Products (product types depend on configuration)
• Generic (predefined) pages (all pages and single layout update)

Returns

array

Definition at line 164 of file Layout.php.

    {
        $options = [];
        $options[] = ['value' => '', 'label' => $this->escapeHtmlAttr(__('-- Please Select --'))];
        $options[] = [
            'label' => __('Categories'),
            'value' => [
                ['value' => 'anchor_categories', 'label' => $this->escapeHtmlAttr(__('Anchor Categories'))],
                ['value' => 'notanchor_categories', 'label' => $this->escapeHtmlAttr(__('Non-Anchor Categories'))],
            ],
        ];
        foreach ($this->_productType->getTypes() as $typeId => $type) {
            $productsOptions[] = [
                'value' => $typeId . '_products',
                'label' => $this->escapeHtmlAttr($type['label']),
            ];
        }
        array_unshift(
            $productsOptions,
            ['value' => 'all_products', 'label' => $this->escapeHtmlAttr(__('All Product Types'))]
        );
        $options[] = ['label' => $this->escapeHtmlAttr(__('Products')), 'value' => $productsOptions];
        $options[] = [
            'label' => $this->escapeHtmlAttr(__('Generic Pages')),
            'value' => [
                ['value' => 'all_pages', 'label' => $this->escapeHtmlAttr(__('All Pages'))],
                ['value' => 'pages', 'label' => $this->escapeHtmlAttr(__('Specified Page'))],
                ['value' => 'page_layouts', 'label' => $this->escapeHtmlAttr(__('Page Layouts'))],
            ],
        ];
        return $options;
    }

getAddLayoutButtonHtml()

getAddLayoutButtonHtml

(

)

Retrieve add layout button html

Returns

string

Definition at line 304 of file Layout.php.

    {
        $button = $this->getLayout()->createBlock(
            \Magento\Backend\Block\Widget\Button::class
        )->setData(
            [
                'label' => __('Add Layout Update'),
                'onclick' => 'WidgetInstance.addPageGroup({})',
                'class' => 'action-add',
            ]
        );
        return $button->toHtml();
    }

getBlockChooserUrl()

getBlockChooserUrl

(

)

Generate url to get reference block chooser by ajax query

Returns

string

Definition at line 118 of file Layout.php.

    {
        return $this->getUrl('adminhtml/*/blocks', ['_current' => true]);
    }

getCategoriesChooserUrl()

getCategoriesChooserUrl

(

)

Generate url to get categories chooser by ajax query

Returns

string

Definition at line 98 of file Layout.php.

    {
        return $this->getUrl('adminhtml/*/categories', ['_current' => true]);
    }

getDisplayOnContainers()

getDisplayOnContainers

(

)

Generate array of parameters for every container type to create html template

Returns

array @SuppressWarnings(PHPMD.UnusedLocalVariable)

Definition at line 203 of file Layout.php.

    {
        $container = [];
        $container['anchor'] = [
            'label' => 'Categories',
            'code' => 'categories',
            'name' => 'anchor_categories',
            'layout_handle' => \Magento\Widget\Model\Widget\Instance::ANCHOR_CATEGORY_LAYOUT_HANDLE,
            'is_anchor_only' => 1,
            'product_type_id' => '',
        ];
        $container['notanchor'] = [
            'label' => 'Categories',
            'code' => 'categories',
            'name' => 'notanchor_categories',
            'layout_handle' => \Magento\Widget\Model\Widget\Instance::NOTANCHOR_CATEGORY_LAYOUT_HANDLE,
            'is_anchor_only' => 0,
            'product_type_id' => '',
        ];
        $container['all_products'] = [
            'label' => 'Products',
            'code' => 'products',
            'name' => 'all_products',
            'layout_handle' => \Magento\Widget\Model\Widget\Instance::PRODUCT_LAYOUT_HANDLE,
            'is_anchor_only' => '',
            'product_type_id' => '',
        ];
        foreach ($this->_productType->getTypes() as $typeId => $type) {
            $container[$typeId] = [
                'label' => 'Products',
                'code' => 'products',
                'name' => $typeId . '_products',
                'layout_handle' => str_replace(
                    '{{TYPE}}',
                    $typeId,
                    \Magento\Widget\Model\Widget\Instance::PRODUCT_TYPE_LAYOUT_HANDLE
                ),
                'is_anchor_only' => '',
                'product_type_id' => $typeId,
            ];
        }
        return $container;
    }

getDisplayOnSelectHtml()

getDisplayOnSelectHtml

(

)

Create and return html of select box Display On

Returns

string

Definition at line 138 of file Layout.php.

    {
        $selectBlock = $this->getLayout()->createBlock(
            \Magento\Framework\View\Element\Html\Select::class
        )->setName(
            'widget_instance[<%- data.id %>][page_group]'
        )->setId(
            'widget_instance[<%- data.id %>][page_group]'
        )->setClass(
            'required-entry page_group_select select'
        )->setExtraParams(
            "onchange=\"WidgetInstance.displayPageGroup(this.value+\'_<%- data.id %>\')\""
        )->setOptions(
            $this->_getDisplayOnOptions()
        );
        return $selectBlock->toHtml();
    }

getElement()

getElement

(

)

Getter

Returns

AbstractElement

Definition at line 88 of file Layout.php.

    {
        return $this->_element;
    }

getLayoutsChooser()

getLayoutsChooser

(

)

Retrieve layout select chooser html

Returns

string

Definition at line 252 of file Layout.php.

    {
        $chooserBlock = $this->getLayout()->createBlock(
            \Magento\Widget\Block\Adminhtml\Widget\Instance\Edit\Chooser\Layout::class
        )->setName(
            'widget_instance[<%- data.id %>][pages][layout_handle]'
        )->setId(
            'layout_handle'
        )->setClass(
            'required-entry select'
        )->setExtraParams(
            "onchange=\"WidgetInstance.loadSelectBoxByType(\'block_reference\', " .
            "this.up(\'div.pages\'), this.value)\""
        )->setArea(
            $this->getWidgetInstance()->getArea()
        )->setTheme(
            $this->getWidgetInstance()->getThemeId()
        );
        return $chooserBlock->toHtml();
    }

getPageGroups()

getPageGroups

(

)

Prepare and retrieve page groups data of widget instance

Returns

array

Definition at line 342 of file Layout.php.

    {
        $widgetInstance = $this->getWidgetInstance();
        $pageGroups = [];
        if ($widgetInstance->getPageGroups()) {
            foreach ($widgetInstance->getPageGroups() as $pageGroup) {
                $pageGroups[] = $this->serializer->serialize($this->getPageGroup($pageGroup));
            }
        }
        return $pageGroups;
    }

getPageLayoutsPageChooser()

getPageLayoutsPageChooser

(

)

Retrieve layout select chooser html

Returns

string

Definition at line 278 of file Layout.php.

    {
        $chooserBlock = $this->getLayout()->createBlock(
            \Magento\Widget\Block\Adminhtml\Widget\Instance\Edit\Chooser\DesignAbstraction::class
        )->setName(
            'widget_instance[<%- data.id %>][page_layouts][layout_handle]'
        )->setId(
            'layout_handle'
        )->setClass(
            'required-entry select'
        )->setExtraParams(
            "onchange=\"WidgetInstance.loadSelectBoxByType(\'block_reference\', " .
            "this.up(\'div.pages\'), this.value)\""
        )->setArea(
            $this->getWidgetInstance()->getArea()
        )->setTheme(
            $this->getWidgetInstance()->getThemeId()
        );
        return $chooserBlock->toHtml();
    }

getProductsChooserUrl()

getProductsChooserUrl

(

)

Generate url to get products chooser by ajax query

Returns

string

Definition at line 108 of file Layout.php.

    {
        return $this->getUrl('adminhtml/*/products', ['_current' => true]);
    }

getRemoveLayoutButtonHtml()

getRemoveLayoutButtonHtml

(

)

Retrieve remove layout button html

Returns

string

Definition at line 323 of file Layout.php.

    {
        $button = $this->getLayout()->createBlock(
            \Magento\Backend\Block\Widget\Button::class
        )->setData(
            [
                'label' => $this->escapeHtmlAttr(__('Remove Layout Update')),
                'onclick' => 'WidgetInstance.removePageGroup(this)',
                'class' => 'action-delete',
            ]
        );
        return $button->toHtml();
    }

getTemplateChooserUrl()

getTemplateChooserUrl

(

)

Generate url to get template chooser by ajax query

Returns

string

Definition at line 128 of file Layout.php.

    {
        return $this->getUrl('adminhtml/*/template', ['_current' => true]);
    }

render()

render

(

AbstractElement

$element

)

Render given element (return html of element)

Parameters

AbstractElement

$element

Returns

string

Definition at line 65 of file Layout.php.

    {
        $this->setElement($element);
        return $this->toHtml();
    }

setElement()

setElement

(

AbstractElement

$element

)

Setter

Parameters

AbstractElement

$element

Returns

$this

Definition at line 77 of file Layout.php.

    {
        $this->_element = $element;
        return $this;
    }

Field Documentation

$_element

$_element = null

protected

Definition at line 25 of file Layout.php.

$_productType

$_productType

protected

Definition at line 35 of file Layout.php.

$_template

$_template = 'Magento_Widget::instance/edit/layout.phtml'

protected

Definition at line 30 of file Layout.php.

---

The documentation for this class was generated from the following file:

• vendor/magento/module-widget/Block/Adminhtml/Widget/Instance/Edit/Tab/Main/Layout.php
