Zend_Pdf_Cmap Class Reference

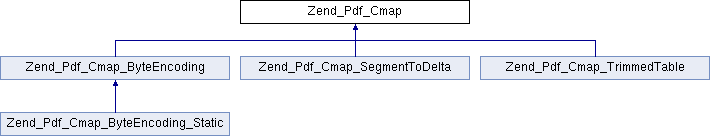

Inheritance diagram for Zend_Pdf_Cmap:

Public Member Functions
	__construct ($cmapData)
	glyphNumbersForCharacters ($characterCodes)
	glyphNumberForCharacter ($characterCode)
	getCoveredCharacters ()
	getCoveredCharactersGlyphs ()

Static Public Member Functions
static	cmapWithTypeData ($cmapType, $cmapData)

Data Fields
const	TYPE_BYTE_ENCODING = 0x00
const	TYPE_HIGH_BYTE_MAPPING = 0x02
const	TYPE_SEGMENT_TO_DELTA = 0x04
const	TYPE_TRIMMED_TABLE = 0x06
const	TYPE_MIXED_COVERAGE = 0x08
const	TYPE_TRIMMED_ARRAY = 0x0a
const	TYPE_SEGMENTED_COVERAGE = 0x0c
const	TYPE_BYTE_ENCODING_STATIC = 0xf1
const	TYPE_UNKNOWN = 0xff
const	MISSING_CHARACTER_GLYPH = 0x00

Protected Member Functions
	_extractInt2 (&$data, $index)
	_extractUInt2 (&$data, $index)
	_extractUInt4 (&$data, $index)

Detailed Description

Definition at line 53 of file Cmap.php.

Constructor & Destructor Documentation

__construct()

__construct (   $cmapData )

abstract

Object constructor

Parses the raw binary table data. Throws an exception if the table is malformed.

Parameters

string

$cmapData

Raw binary cmap table data.

Exceptions

Zend_Pdf_Exception

Member Function Documentation

_extractInt2()

_extractInt2 ( &  $data,   $index  )

protected

Extracts a signed 2-byte integer from a string.

Integers are always big-endian. Throws an exception if the index is out of range.

Parameters

string	&$data
integer	$index	Position in string of integer.

Returns

integer

Exceptions

Zend_Pdf_Exception

Definition at line 270 of file Cmap.php.

    {
        if (($index < 0) | (($index + 1) > strlen($data))) {
            #require_once 'Zend/Pdf/Exception.php';
            throw new Zend_Pdf_Exception("Index out of range: $index",
                                         Zend_Pdf_Exception::INDEX_OUT_OF_RANGE);
        }
        $number = ord($data[$index]);
        if (($number & 0x80) == 0x80) {    // negative
            $number = ~((((~ $number) & 0xff) << 8) | ((~ ord($data[++$index])) & 0xff));
        } else {
            $number = ($number << 8) | ord($data[++$index]);
        }
        return $number;
    }

_extractUInt2()

_extractUInt2 ( &  $data,   $index  )

protected

Extracts an unsigned 2-byte integer from a string.

Integers are always big-endian. Throws an exception if the index is out of range.

Parameters

string	&$data
integer	$index	Position in string of integer.

Returns

integer

Exceptions

Zend_Pdf_Exception

Definition at line 297 of file Cmap.php.

    {
        if (($index < 0) | (($index + 1) > strlen($data))) {
            #require_once 'Zend/Pdf/Exception.php';
            throw new Zend_Pdf_Exception("Index out of range: $index",
                                         Zend_Pdf_Exception::INDEX_OUT_OF_RANGE);
        }
        $number = (ord($data[$index]) << 8) | ord($data[++$index]);
        return $number;
    }

_extractUInt4()

_extractUInt4 ( &  $data,   $index  )

protected

Extracts an unsigned 4-byte integer from a string.

Integers are always big-endian. Throws an exception if the index is out of range.

NOTE: If you ask for a 4-byte unsigned integer on a 32-bit machine, the resulting value WILL BE SIGNED because PHP uses signed integers internally for everything. To guarantee portability, be sure to use bitwise or similar operators on large integers!

Parameters

string	&$data
integer	$index	Position in string of integer.

Returns

integer

Exceptions

Zend_Pdf_Exception

Definition at line 324 of file Cmap.php.

    {
        if (($index < 0) | (($index + 3) > strlen($data))) {
            #require_once 'Zend/Pdf/Exception.php';
            throw new Zend_Pdf_Exception("Index out of range: $index",
                                         Zend_Pdf_Exception::INDEX_OUT_OF_RANGE);
        }
        $number = (ord($data[$index]) << 24) | (ord($data[++$index]) << 16) |
                  (ord($data[++$index]) << 8) | ord($data[++$index]);
        return $number;
    }

cmapWithTypeData()

static cmapWithTypeData (   $cmapType,   $cmapData  )

static

Instantiates the appropriate concrete subclass based on the type of cmap table and returns the instance.

The cmap type must be one of the following values:

• Zend_Pdf_Cmap::TYPE_BYTE_ENCODING
• Zend_Pdf_Cmap::TYPE_BYTE_ENCODING_STATIC
• Zend_Pdf_Cmap::TYPE_HIGH_BYTE_MAPPING
• Zend_Pdf_Cmap::TYPE_SEGMENT_TO_DELTA
• Zend_Pdf_Cmap::TYPE_TRIMMED_TABLE
• Zend_Pdf_Cmap::TYPE_MIXED_COVERAGE
• Zend_Pdf_Cmap::TYPE_TRIMMED_ARRAY
• Zend_Pdf_Cmap::TYPE_SEGMENTED_COVERAGE

Throws an exception if the table type is invalid or the cmap table data cannot be validated.

Parameters

integer	$cmapType	Type of cmap.
mixed	$cmapData	Cmap table data. Usually a string or array.

Returns

Zend_Pdf_Cmap

Exceptions

Zend_Pdf_Exception

Definition at line 145 of file Cmap.php.

    {
        switch ($cmapType) {
            case Zend_Pdf_Cmap::TYPE_BYTE_ENCODING:
                #require_once 'Zend/Pdf/Cmap/ByteEncoding.php';
                return new Zend_Pdf_Cmap_ByteEncoding($cmapData);

            case Zend_Pdf_Cmap::TYPE_BYTE_ENCODING_STATIC:
                #require_once 'Zend/Pdf/Cmap/ByteEncoding/Static.php';
                return new Zend_Pdf_Cmap_ByteEncoding_Static($cmapData);

            case Zend_Pdf_Cmap::TYPE_HIGH_BYTE_MAPPING:
                #require_once 'Zend/Pdf/Exception.php';
                throw new Zend_Pdf_Exception('High byte mapping cmap currently unsupported',
                                             Zend_Pdf_Exception::CMAP_TYPE_UNSUPPORTED);

            case Zend_Pdf_Cmap::TYPE_SEGMENT_TO_DELTA:
                #require_once 'Zend/Pdf/Cmap/SegmentToDelta.php';
                return new Zend_Pdf_Cmap_SegmentToDelta($cmapData);

            case Zend_Pdf_Cmap::TYPE_TRIMMED_TABLE:
                #require_once 'Zend/Pdf/Cmap/TrimmedTable.php';
                return new Zend_Pdf_Cmap_TrimmedTable($cmapData);

            case Zend_Pdf_Cmap::TYPE_MIXED_COVERAGE:
                #require_once 'Zend/Pdf/Exception.php';
                throw new Zend_Pdf_Exception('Mixed coverage cmap currently unsupported',
                                             Zend_Pdf_Exception::CMAP_TYPE_UNSUPPORTED);

            case Zend_Pdf_Cmap::TYPE_TRIMMED_ARRAY:
                #require_once 'Zend/Pdf/Exception.php';
                throw new Zend_Pdf_Exception('Trimmed array cmap currently unsupported',
                                             Zend_Pdf_Exception::CMAP_TYPE_UNSUPPORTED);

            case Zend_Pdf_Cmap::TYPE_SEGMENTED_COVERAGE:
                #require_once 'Zend/Pdf/Exception.php';
                throw new Zend_Pdf_Exception('Segmented coverage cmap currently unsupported',
                                             Zend_Pdf_Exception::CMAP_TYPE_UNSUPPORTED);

            default:
                #require_once 'Zend/Pdf/Exception.php';
                throw new Zend_Pdf_Exception("Unknown cmap type: $cmapType",
                                             Zend_Pdf_Exception::CMAP_UNKNOWN_TYPE);
        }
    }

getCoveredCharacters()

getCoveredCharacters ( )

abstract

Returns an array containing the Unicode characters that have entries in this character map.

Returns

array Unicode character codes.

getCoveredCharactersGlyphs()

getCoveredCharactersGlyphs ( )

abstract

Returns an array containing the glyphs numbers that have entries in this character map. Keys are Unicode character codes (integers)

This functionality is partially covered by glyphNumbersForCharacters(getCoveredCharacters()) call, but this method do it in more effective way (prepare complete list instead of searching glyph for each character code).

glyphNumberForCharacter()

glyphNumberForCharacter (   $characterCode )

abstract

Returns the glyph number corresponding to the Unicode character.

If a particular character doesn't exist in this font, the special 'missing character glyph' will be substituted.

See also glyphNumbersForCharacters() which is optimized for bulk operations.

Parameters

integer

$characterCode

Unicode character code (code point).

Returns

integer Glyph number.

glyphNumbersForCharacters()

glyphNumbersForCharacters (   $characterCodes )

abstract

Returns an array of glyph numbers corresponding to the Unicode characters.

If a particular character doesn't exist in this font, the special 'missing character glyph' will be substituted.

See also glyphNumberForCharacter().

Parameters

array

$characterCodes

Array of Unicode character codes (code points).

Returns

array Array of glyph numbers.

Field Documentation

MISSING_CHARACTER_GLYPH

const MISSING_CHARACTER_GLYPH = 0x00

Glyph representing missing characters.

Definition at line 112 of file Cmap.php.

TYPE_BYTE_ENCODING

const TYPE_BYTE_ENCODING = 0x00

Byte Encoding character map table type.

Definition at line 63 of file Cmap.php.

TYPE_BYTE_ENCODING_STATIC

const TYPE_BYTE_ENCODING_STATIC = 0xf1

Static Byte Encoding character map table type. Variant of TYPE_BYTEENCODING.

Definition at line 99 of file Cmap.php.

TYPE_HIGH_BYTE_MAPPING

const TYPE_HIGH_BYTE_MAPPING = 0x02

High Byte Mapping character map table type.

Definition at line 68 of file Cmap.php.

TYPE_MIXED_COVERAGE

const TYPE_MIXED_COVERAGE = 0x08

Mixed Coverage character map table type.

Definition at line 83 of file Cmap.php.

TYPE_SEGMENT_TO_DELTA

const TYPE_SEGMENT_TO_DELTA = 0x04

Segment Value to Delta Mapping character map table type.

Definition at line 73 of file Cmap.php.

TYPE_SEGMENTED_COVERAGE

const TYPE_SEGMENTED_COVERAGE = 0x0c

Segmented Coverage character map table type.

Definition at line 93 of file Cmap.php.

TYPE_TRIMMED_ARRAY

const TYPE_TRIMMED_ARRAY = 0x0a

Trimmed Array character map table type.

Definition at line 88 of file Cmap.php.

TYPE_TRIMMED_TABLE

const TYPE_TRIMMED_TABLE = 0x06

Trimmed Table character map table type.

Definition at line 78 of file Cmap.php.

TYPE_UNKNOWN

const TYPE_UNKNOWN = 0xff

Unknown character map table type.

Definition at line 104 of file Cmap.php.

---

The documentation for this class was generated from the following file:

• vendor/magento/zendframework1/library/Zend/Pdf/Cmap.php
