Zend_Pdf_Resource_Font_Simple Class Reference

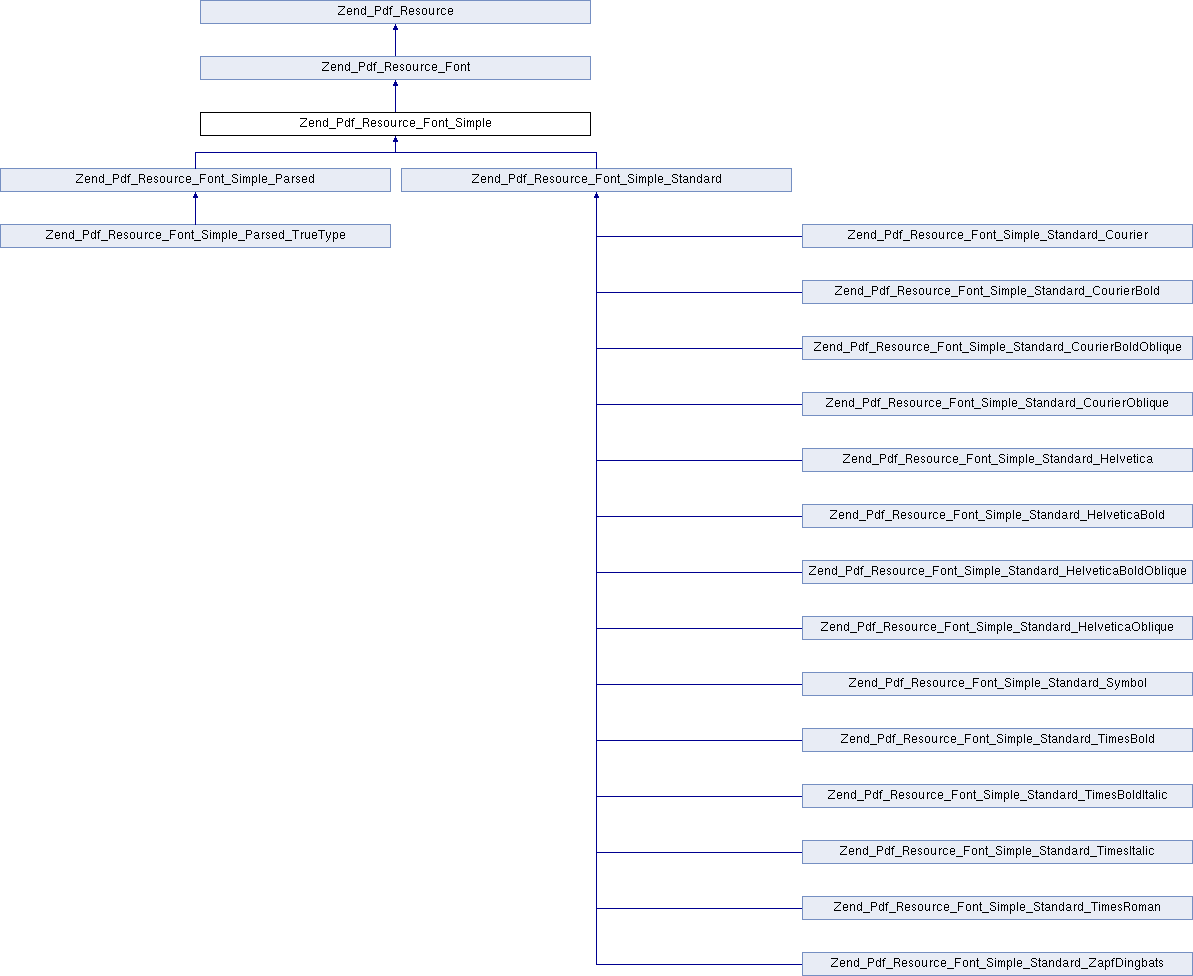

Inheritance diagram for Zend_Pdf_Resource_Font_Simple:

Public Member Functions
	__construct ()
	glyphNumbersForCharacters ($characterCodes)
	glyphNumberForCharacter ($characterCode)
	getCoveredPercentage ($string, $charEncoding='')
	widthsForGlyphs ($glyphNumbers)
	widthForGlyph ($glyphNumber)
	encodeString ($string, $charEncoding)
	decodeString ($string, $charEncoding)
Public Member Functions inherited from Zend_Pdf_Resource_Font
	__construct ()
	__toString ()
	getFontType ()
	getFontName ($nameType, $language, $characterSet=null)
	getFontNames ()
	isBold ()
	isItalic ()
	isMonospace ()
	getUnderlinePosition ()
	getUnderlineThickness ()
	getStrikePosition ()
	getStrikeThickness ()
	getUnitsPerEm ()
	getAscent ()
	getDescent ()
	getLineGap ()
	getLineHeight ()
	glyphNumbersForCharacters ($characterCodes)
	glyphNumberForCharacter ($characterCode)
	getCoveredPercentage ($string, $charEncoding='')
	widthsForGlyphs ($glyphNumbers)
	widthForGlyph ($glyphNumber)
	encodeString ($string, $charEncoding)
	decodeString ($string, $charEncoding)
	toEmSpace ($value)
Public Member Functions inherited from Zend_Pdf_Resource
	__construct ($resource)
	__clone ()
	cloneResource ($factory, &$processed)
	getResource ()
	getFactory ()

Protected Attributes
	$_cmap = null
	$_glyphWidths = null
	$_missingGlyphWidth = 0
Protected Attributes inherited from Zend_Pdf_Resource_Font
	$_fontType = Zend_Pdf_Font::TYPE_UNKNOWN
	$_fontNames = array()
	$_isBold = false
	$_isItalic = false
	$_isMonospace = false
	$_underlinePosition = 0
	$_underlineThickness = 0
	$_strikePosition = 0
	$_strikeThickness = 0
	$_unitsPerEm = 0
	$_ascent = 0
	$_descent = 0
	$_lineGap = 0
Protected Attributes inherited from Zend_Pdf_Resource
	$_objectFactory
	$_resource

Detailed Description

Definition at line 62 of file Simple.php.

Constructor & Destructor Documentation

__construct()

__construct

(

)

Object constructor

Todo:

It's easy to add other encodings support now (Standard-Encoding, MacRomanEncoding, PDFDocEncoding, MacExpertEncoding, Symbol, and ZapfDingbats). Steps for the implementation:

• completely describe all PDF single byte encodings in the documentation
• implement non-WinAnsi encodings processing into encodeString()/decodeString() methods

These encodings will be automatically supported for standard builtin PDF fonts as well as for external fonts.

Definition at line 105 of file Simple.php.

    {
        parent::__construct();

        $this->_resource->Encoding = new Zend_Pdf_Element_Name('WinAnsiEncoding');
    }

Member Function Documentation

decodeString()

decodeString	(		$string,
			$charEncoding
	)

Convert string from the font encoding.

The method is used to convert strings retrieved from existing content streams

Parameters

string	$string
string	$charEncoding	Character encoding of resulting text.

Returns

string

Definition at line 279 of file Simple.php.

    {
        return iconv('CP1252', $charEncoding, $string);
    }

encodeString()

encodeString	(		$string,
			$charEncoding
	)

Convert string to the font encoding.

The method is used to prepare string for text drawing operators

Parameters

string	$string
string	$charEncoding	Character encoding of source text.

Returns

string

Definition at line 261 of file Simple.php.

    {
        if (PHP_OS == 'AIX') {
            return $string; // returning here b/c AIX doesnt know what CP1252 is
        }

        return iconv($charEncoding, 'CP1252//IGNORE', $string);
    }

getCoveredPercentage()

getCoveredPercentage	(		$string,
			$charEncoding = ''
	)

Returns a number between 0 and 1 inclusive that indicates the percentage of characters in the string which are covered by glyphs in this font.

Since no one font will contain glyphs for the entire Unicode character range, this method can be used to help locate a suitable font when the actual contents of the string are not known.

Note that some fonts lie about the characters they support. Additionally, fonts don't usually contain glyphs for control characters such as tabs and line breaks, so it is rare that you will get back a full 1.0 score. The resulting value should be considered informational only.

Parameters

string	$string
string	$charEncoding	(optional) Character encoding of source text. If omitted, uses 'current locale'.

Returns

float

Todo:

Properly handle characters encoded as surrogate pairs.

Definition at line 174 of file Simple.php.

    {
        /* Convert the string to UTF-16BE encoding so we can match the string's
         * character codes to those found in the cmap.
         */
        if ($charEncoding != 'UTF-16BE') {
            if (PHP_OS != 'AIX') { // AIX doesnt know what UTF-16BE is
                $string = iconv($charEncoding, 'UTF-16BE', $string);
            }
        }

        $charCount = (PHP_OS != 'AIX') ? iconv_strlen($string, 'UTF-16BE') : strlen($string);
        if ($charCount == 0) {
            return 0;
        }

        /* Fetch the covered character code list from the font's cmap.
         */
        $coveredCharacters = $this->_cmap->getCoveredCharacters();

        /* Calculate the score by doing a lookup for each character.
         */
        $score = 0;
        $maxIndex = strlen($string);
        for ($i = 0; $i < $maxIndex; $i++) {
            $charCode = (ord($string[$i]) << 8) | ord($string[++$i]);
            /* This could probably be optimized a bit with a binary search...
             */
            if (in_array($charCode, $coveredCharacters)) {
                $score++;
            }
        }
        return $score / $charCount;
    }

glyphNumberForCharacter()

glyphNumberForCharacter

(

$characterCode

)

Returns the glyph number corresponding to the Unicode character.

If a particular character doesn't exist in this font, the special 'missing character glyph' will be substituted.

See also glyphNumbersForCharacters() which is optimized for bulk operations.

Parameters

integer

$characterCode

Unicode character code (code point).

Returns

integer Glyph number.

Definition at line 151 of file Simple.php.

    {
        return $this->_cmap->glyphNumberForCharacter($characterCode);
    }

glyphNumbersForCharacters()

glyphNumbersForCharacters

(

$characterCodes

)

Returns an array of glyph numbers corresponding to the Unicode characters.

If a particular character doesn't exist in this font, the special 'missing character glyph' will be substituted.

See also glyphNumberForCharacter().

Parameters

array

$characterCodes

Array of Unicode character codes (code points).

Returns

array Array of glyph numbers.

Definition at line 134 of file Simple.php.

    {
        return $this->_cmap->glyphNumbersForCharacters($characterCodes);
    }

widthForGlyph()

widthForGlyph

(

$glyphNumber

)

Returns the width of the glyph.

Like widthsForGlyphs() but used for one glyph at a time.

Parameters

integer

$glyphNumber

Returns

integer

Definition at line 244 of file Simple.php.

    {
        if (!isset($this->_glyphWidths[$glyphNumber])) {
            return $this->_missingGlyphWidth;
        }
        return $this->_glyphWidths[$glyphNumber];
    }

widthsForGlyphs()

widthsForGlyphs

(

$glyphNumbers

)

Returns the widths of the glyphs.

The widths are expressed in the font's glyph space. You are responsible for converting to user space as necessary. See unitsPerEm().

See also widthForGlyph().

Parameters

array

&$glyphNumbers

Array of glyph numbers.

Returns

array Array of glyph widths (integers).

Definition at line 223 of file Simple.php.

    {
        $widths = array();
        foreach ($glyphNumbers as $key => $glyphNumber) {
            if (!isset($this->_glyphWidths[$glyphNumber])) {
                $widths[$key] = $this->_missingGlyphWidth;
            } else {
                $widths[$key] = $this->_glyphWidths[$glyphNumber];
            }
        }
        return $widths;
    }

Field Documentation

$_cmap

$_cmap = null

protected

Definition at line 68 of file Simple.php.

$_glyphWidths

$_glyphWidths = null

protected

Definition at line 80 of file Simple.php.

$_missingGlyphWidth

$_missingGlyphWidth = 0

protected

Definition at line 93 of file Simple.php.

---

The documentation for this class was generated from the following file:

• vendor/magento/zendframework1/library/Zend/Pdf/Resource/Font/Simple.php
