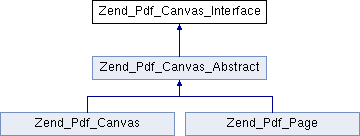

Inheritance diagram for Zend_Pdf_Canvas_Interface:

Public Member Functions
	getResources ()

	getContents ()

	getHeight ()

	getWidth ()

	drawCanvas (Zend_Pdf_Canvas_Interface $canvas, $x1, $y1, $x2=null, $y2=null)

	setFillColor (Zend_Pdf_Color $color)

	setLineColor (Zend_Pdf_Color $color)

	setLineWidth ($width)

	setLineDashingPattern ($pattern, $phase=0)

	setFont (Zend_Pdf_Resource_Font $font, $fontSize)

	setStyle (Zend_Pdf_Style $style)

	getFont ()

	getFontSize ()

	getStyle ()

	saveGS ()

	setAlpha ($alpha, $mode='Normal')

	clipCircle ($x, $y, $radius, $startAngle=null, $endAngle=null)

	clipEllipse ($x1, $y1, $x2, $y2, $startAngle=null, $endAngle=null)

	clipPolygon ($x, $y, $fillMethod=Zend_Pdf_Page::FILL_METHOD_NON_ZERO_WINDING)

	clipRectangle ($x1, $y1, $x2, $y2)

	drawCircle ($x, $y, $radius, $param4=null, $param5=null, $param6=null)

	drawEllipse ($x1, $y1, $x2, $y2, $param5=null, $param6=null, $param7=null)

	drawImage (Zend_Pdf_Resource_Image $image, $x1, $y1, $x2, $y2)

	drawLayoutBox ($box, $x, $y)

	drawLine ($x1, $y1, $x2, $y2)

	drawPolygon ($x, $y, $fillType=Zend_Pdf_Page::SHAPE_DRAW_FILL_AND_STROKE, $fillMethod=Zend_Pdf_Page::FILL_METHOD_NON_ZERO_WINDING)

	drawRectangle ($x1, $y1, $x2, $y2, $fillType=Zend_Pdf_Page::SHAPE_DRAW_FILL_AND_STROKE)

	drawRoundedRectangle ($x1, $y1, $x2, $y2, $radius, $fillType=Zend_Pdf_Page::SHAPE_DRAW_FILL_AND_STROKE)

	drawText ($text, $x, $y, $charEncoding='')

	pathClose ()

	pathLine ($x, $y)

	pathMove ($x, $y)

	rotate ($x, $y, $angle)

	scale ($xScale, $yScale)

	translate ($xShift, $yShift)

	skew ($x, $y, $xAngle, $yAngle)

	rawWrite ($data, $procSet=null)

Detailed Description

Definition at line 31 of file Interface.php.

Member Function Documentation

◆ clipCircle()

clipCircle	(	$x,
		$y,
		$radius,
		$startAngle = `null`,
		$endAngle = `null`
	)

Intersect current clipping area with a circle.

Parameters

float	$x
float	$y
float	$radius
float	$startAngle
float	$endAngle

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ clipEllipse()

clipEllipse	(	$x1,
		$y1,
		$x2,
		$y2,
		$startAngle = `null`,
		$endAngle = `null`
	)

Intersect current clipping area with a polygon.

Method signatures: drawEllipse($x1, $y1, $x2, $y2); drawEllipse($x1, $y1, $x2, $y2, $startAngle, $endAngle);

Todo:: process special cases with $x2-$x1 == 0 or $y2-$y1 == 0

Parameters

float	$x1
float	$y1
float	$x2
float	$y2
float	$startAngle
float	$endAngle

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ clipPolygon()

clipPolygon	(	$x,
		$y,
		$fillMethod = `Zend_Pdf_Page::FILL_METHOD_NON_ZERO_WINDING`
	)

Intersect current clipping area with a polygon.

Parameters

array	$x	- array of float (the X co-ordinates of the vertices)
array	$y	- array of float (the Y co-ordinates of the vertices)
integer	$fillMethod

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ clipRectangle()

clipRectangle	(	$x1,
		$y1,
		$x2,
		$y2
	)

Intersect current clipping area with a rectangle.

Parameters

float	$x1
float	$y1
float	$x2
float	$y2

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ drawCanvas()

drawCanvas	(	Zend_Pdf_Canvas_Interface	$canvas,
			$x1,
			$y1,
			$x2 = `null`,
			$y2 = `null`
	)

Draw a canvas at the specified location

If upper right corner is not specified then canvas heght and width are used.

Parameters

Zend_Pdf_Canvas_Interface	$canvas
float	$x1
float	$y1
float	$x2
float	$y2

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ drawCircle()

drawCircle	(	$x,
		$y,
		$radius,
		$param4 = `null`,
		$param5 = `null`,
		$param6 = `null`
	)

Draw a circle centered on x, y with a radius of radius.

Method signatures: drawCircle($x, $y, $radius); drawCircle($x, $y, $radius, $fillType); drawCircle($x, $y, $radius, $startAngle, $endAngle); drawCircle($x, $y, $radius, $startAngle, $endAngle, $fillType);

It's not a really circle, because PDF supports only cubic Bezier curves. But very good approximation. It differs from a real circle on a maximum 0.00026 radiuses (at PI/8, 3*PI/8, 5*PI/8, 7*PI/8, 9*PI/8, 11*PI/8, 13*PI/8 and 15*PI/8 angles). At 0, PI/4, PI/2, 3*PI/4, PI, 5*PI/4, 3*PI/2 and 7*PI/4 it's exactly a tangent to a circle.

Parameters

float	$x
float	$y
float	$radius
mixed	$param4
mixed	$param5
mixed	$param6

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ drawEllipse()

drawEllipse	(	$x1,
		$y1,
		$x2,
		$y2,
		$param5 = `null`,
		$param6 = `null`,
		$param7 = `null`
	)

Draw an ellipse inside the specified rectangle.

Method signatures: drawEllipse($x1, $y1, $x2, $y2); drawEllipse($x1, $y1, $x2, $y2, $fillType); drawEllipse($x1, $y1, $x2, $y2, $startAngle, $endAngle); drawEllipse($x1, $y1, $x2, $y2, $startAngle, $endAngle, $fillType);

Todo:: process special cases with $x2-$x1 == 0 or $y2-$y1 == 0

Parameters

float	$x1
float	$y1
float	$x2
float	$y2
mixed	$param5
mixed	$param6
mixed	$param7

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ drawImage()

drawImage	(	Zend_Pdf_Resource_Image	$image,
			$x1,
			$y1,
			$x2,
			$y2
	)

Draw an image at the specified position on the page.

Parameters

Zend_Pdf_Image	$image
float	$x1
float	$y1
float	$x2
float	$y2

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ drawLayoutBox()

drawLayoutBox	(	$box,
		$x,
		$y
	)

Draw a LayoutBox at the specified position on the page.

Implemented in Zend_Pdf_Canvas_Abstract.

◆ drawLine()

drawLine	(	$x1,
		$y1,
		$x2,
		$y2
	)

Draw a line from x1,y1 to x2,y2.

Parameters

float	$x1
float	$y1
float	$x2
float	$y2

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ drawPolygon()

drawPolygon	(	$x,
		$y,
		$fillType = `Zend_Pdf_Page::SHAPE_DRAW_FILL_AND_STROKE`,
		$fillMethod = `Zend_Pdf_Page::FILL_METHOD_NON_ZERO_WINDING`
	)

Draw a polygon.

If $fillType is Zend_Pdf_Page::SHAPE_DRAW_FILL_AND_STROKE or Zend_Pdf_Page::SHAPE_DRAW_FILL, then polygon is automatically closed. See detailed description of these methods in a PDF documentation (section 4.4.2 Path painting Operators, Filling)

Parameters

array	$x	- array of float (the X co-ordinates of the vertices)
array	$y	- array of float (the Y co-ordinates of the vertices)
integer	$fillType
integer	$fillMethod

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ drawRectangle()

drawRectangle	(	$x1,
		$y1,
		$x2,
		$y2,
		$fillType = `Zend_Pdf_Page::SHAPE_DRAW_FILL_AND_STROKE`
	)

Draw a rectangle.

Fill types: Zend_Pdf_Page::SHAPE_DRAW_FILL_AND_STROKE - fill rectangle and stroke (default) Zend_Pdf_Page::SHAPE_DRAW_STROKE - stroke rectangle Zend_Pdf_Page::SHAPE_DRAW_FILL - fill rectangle

Parameters

float	$x1
float	$y1
float	$x2
float	$y2
integer	$fillType

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ drawRoundedRectangle()

drawRoundedRectangle	(	$x1,
		$y1,
		$x2,
		$y2,
		$radius,
		$fillType = `Zend_Pdf_Page::SHAPE_DRAW_FILL_AND_STROKE`
	)

Draw a rounded rectangle.

Fill types: Zend_Pdf_Page::SHAPE_DRAW_FILL_AND_STROKE - fill rectangle and stroke (default) Zend_Pdf_Page::SHAPE_DRAW_STROKE - stroke rectangle Zend_Pdf_Page::SHAPE_DRAW_FILL - fill rectangle

radius is an integer representing radius of the four corners, or an array of four integers representing the radius starting at top left, going clockwise

Parameters

float	$x1
float	$y1
float	$x2
float	$y2
integer \| array	$radius
integer	$fillType

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ drawText()

drawText	(	$text,
		$x,
		$y,
		$charEncoding = `''`
	)

Draw a line of text at the specified position.

Parameters

string	$text
float	$x
float	$y
string	$charEncoding	(optional) Character encoding of source text. Defaults to current locale.

Exceptions

Zend_Pdf_Exception

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ getContents()

getContents ( )

Get drawing instructions stream

It has to be returned as a PDF stream object to make it reusable.

Implemented in Zend_Pdf_Page, and Zend_Pdf_Canvas.

◆ getFont()

getFont ( )

Get current font.

Returns: Zend_Pdf_Resource_Font $font

Implemented in Zend_Pdf_Canvas_Abstract.

◆ getFontSize()

getFontSize ( )

Get current font size

Returns: float $fontSize

Implemented in Zend_Pdf_Canvas_Abstract.

◆ getHeight()

getHeight ( )

Return canvas height.

Returns: float

Implemented in Zend_Pdf_Page, and Zend_Pdf_Canvas.

◆ getResources()

getResources ( )

Returns dictionaries of used resources.

Used for canvas implementations interoperability

Structure of the returned array: array( <resTypeName> => array( <resName> => <Zend_Pdf_Resource object>="">, <resName> => <Zend_Pdf_Resource object>="">, <resName> => <Zend_Pdf_Resource object>="">, ... ), <resTypeName> => array( <resName> => <Zend_Pdf_Resource object>="">, <resName> => <Zend_Pdf_Resource object>="">, <resName> => <Zend_Pdf_Resource object>="">, ... ), ... 'ProcSet' => array() )

where ProcSet array is a list of used procedure sets names (strings). Allowed procedure set names: 'PDF', 'Text', 'ImageB', 'ImageC', 'ImageI'

Implemented in Zend_Pdf_Page, and Zend_Pdf_Canvas.

◆ getStyle()

getStyle ( )

Return the style, applied to the page.

Returns: Zend_Pdf_Style|null

Implemented in Zend_Pdf_Canvas_Abstract.

◆ getWidth()

getWidth ( )

Return canvas width.

Returns: float

Implemented in Zend_Pdf_Page, and Zend_Pdf_Canvas.

◆ pathClose()

pathClose ( )

Close the path by drawing a straight line back to it's beginning.

Implemented in Zend_Pdf_Canvas_Abstract.

◆ pathLine()

pathLine	(	$x,
		$y
	)

Continue the open path in a straight line to the specified position.

Implemented in Zend_Pdf_Canvas_Abstract.

◆ pathMove()

pathMove	(	$x,
		$y
	)

Start a new path at the specified position. If a path has already been started, move the cursor without drawing a line.

Implemented in Zend_Pdf_Canvas_Abstract.

◆ rawWrite()

rawWrite	(	$data,
		$procSet = `null`
	)

Writes the raw data to the page's content stream.

Be sure to consult the PDF reference to ensure your syntax is correct. No attempt is made to ensure the validity of the stream data.

Parameters

string	$data
string	$procSet	(optional) Name of ProcSet to add.

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ rotate()

rotate	(	$x,
		$y,
		$angle
	)

Rotate the page.

Parameters

float	$x	- the X co-ordinate of rotation point
float	$y	- the Y co-ordinate of rotation point
float	$angle	- rotation angle

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ saveGS()

saveGS ( )

Save the graphics state of this page. This takes a snapshot of the currently applied style, position, clipping area and any rotation/translation/scaling that has been applied.

Exceptions

Zend_Pdf_Exception - if a save is performed with an open path

Returns: Zend_Pdf_Page

Implemented in Zend_Pdf_Canvas_Abstract.

◆ scale()

scale	(	$xScale,
		$yScale
	)

Scale coordination system.

Parameters

float	$xScale	- X dimention scale factor
float	$yScale	- Y dimention scale factor

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ setAlpha()

setAlpha	(	$alpha,
		$mode = `'Normal'`
	)

Set the transparancy

$alpha == 0 - transparent $alpha == 1 - opaque

Transparency modes, supported by PDF: Normal (default), Multiply, Screen, Overlay, Darken, Lighten, ColorDodge, ColorBurn, HardLight, SoftLight, Difference, Exclusion

Parameters

float	$alpha
string	$mode

Exceptions

Zend_Pdf_Exception

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ setFillColor()

setFillColor ( Zend_Pdf_Color $color )

Set fill color.

Parameters

Zend_Pdf_Color $color

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ setFont()

setFont	(	Zend_Pdf_Resource_Font	$font,
			$fontSize
	)

Set current font.

Parameters

Zend_Pdf_Resource_Font	$font
float	$fontSize

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ setLineColor()

setLineColor ( Zend_Pdf_Color $color )

Set line color.

Parameters

Zend_Pdf_Color $color

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ setLineDashingPattern()

setLineDashingPattern	(	$pattern,
		$phase = `0`
	)

Set line dashing pattern

Pattern is an array of floats: array(on_length, off_length, on_length, off_length, ...) or Zend_Pdf_Page::LINE_DASHING_SOLID constant Phase is shift from the beginning of line.

Parameters

mixed	$pattern
array	$phase

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ setLineWidth()

setLineWidth ( $width )

Set line width.

Parameters

float $width

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ setStyle()

setStyle ( Zend_Pdf_Style $style )

Set the style to use for future drawing operations on this page

Parameters

Zend_Pdf_Style $style

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ skew()

skew	(	$x,
		$y,
		$xAngle,
		$yAngle
	)

Translate coordination system.

Parameters

float	$x	- the X co-ordinate of axis skew point
float	$y	- the Y co-ordinate of axis skew point
float	$xAngle	- X axis skew angle
float	$yAngle	- Y axis skew angle

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

◆ translate()

translate	(	$xShift,
		$yShift
	)

Translate coordination system.

Parameters

float	$xShift	- X coordinate shift
float	$yShift	- Y coordinate shift

Returns: Zend_Pdf_Canvas_Interface

Implemented in Zend_Pdf_Canvas_Abstract.

The documentation for this interface was generated from the following file:

vendor/magento/zendframework1/library/Zend/Pdf/Canvas/Interface.php

Public Member Functions

Detailed Description

Member Function Documentation

◆ clipCircle()

◆ clipEllipse()

◆ clipPolygon()

◆ clipRectangle()

◆ drawCanvas()

◆ drawCircle()

◆ drawEllipse()

◆ drawImage()

◆ drawLayoutBox()

◆ drawLine()

◆ drawPolygon()

◆ drawRectangle()

◆ drawRoundedRectangle()

◆ drawText()

◆ getContents()

◆ getFont()

◆ getFontSize()

◆ getHeight()

◆ getResources()

◆ getStyle()

◆ getWidth()

◆ pathClose()

◆ pathLine()

◆ pathMove()

◆ rawWrite()

◆ rotate()

◆ saveGS()

◆ scale()

◆ setAlpha()

◆ setFillColor()

◆ setFont()

◆ setLineColor()

◆ setLineDashingPattern()

◆ setLineWidth()

◆ setStyle()

◆ skew()

◆ translate()
